ANAFITM
- THERMAL -
The ultra-compact, fully-integrated thermal drone
T H E R M A L & V I S I B L E I M A G E R Y
T W O I N T E G R AT E D S E N S O R S W O R K I N G I N F U L L S Y N C H R O N I Z AT I O N
• FLIR radiometric thermal sensor 1 : 160x120 resolution, 57° HFOV, -10°C to +400°C temperature range
• Sony Sensor 2 for visible images (RGB): 1/2.4’’ 21MP CMOS, 4K HDR video recording capabilities
• Blended thermal & RGB images in thermal view (temporal synchronisation of thermal & RGB images)
• Record videos and capture pictures in thermal or visible formats
(video quality: 1440x1080p in thermal view / 4K HDR in visible view)
• 3-axis hybrid stabilisation (2-axis mechanical combined with 3-axis digital stabilisation)
• +/-90° = 180° camera tilt (Zenith to Nadir views)
• Zoom function (3x digital zoom in thermal view)
Thermal Features
Color modes
There are 3 color modes (or palettes) for the thermal spectrum, to cover a wide array of exploration needs.
Absolute palette
The Absolute thermal mode is the most versatile of ANAFI Thermal’s thermography modes. It enables the user
to select a custom temperature scale and to focus on it, to achieve extremely precise color readings.

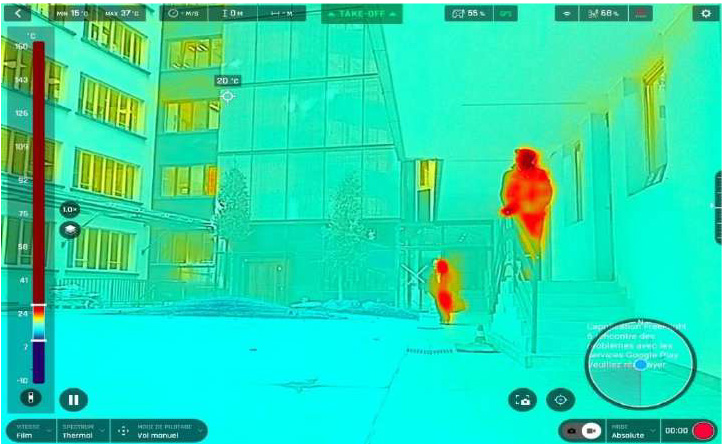

Absolute palette screenshot
Relative palette
The Relative mode is useful to get a quick overview of any scene’s temperature range. In this mode, even slight heat differences materialize as strong contrasts.
Relative palette screenshot
Spot palette
The Spot thermal mode of ANAFI Thermal is especially useful to isolate cold or hot spots.

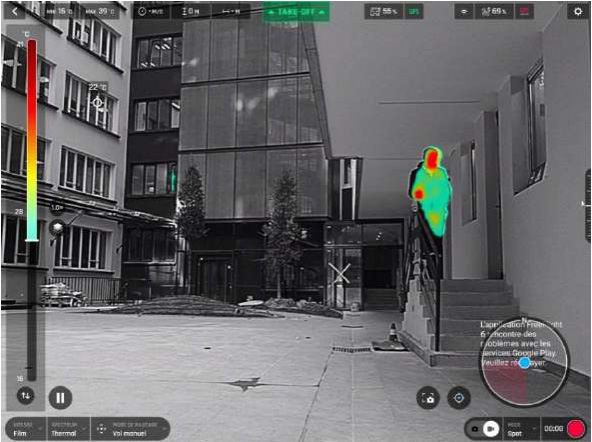

Spot palette screenshot
